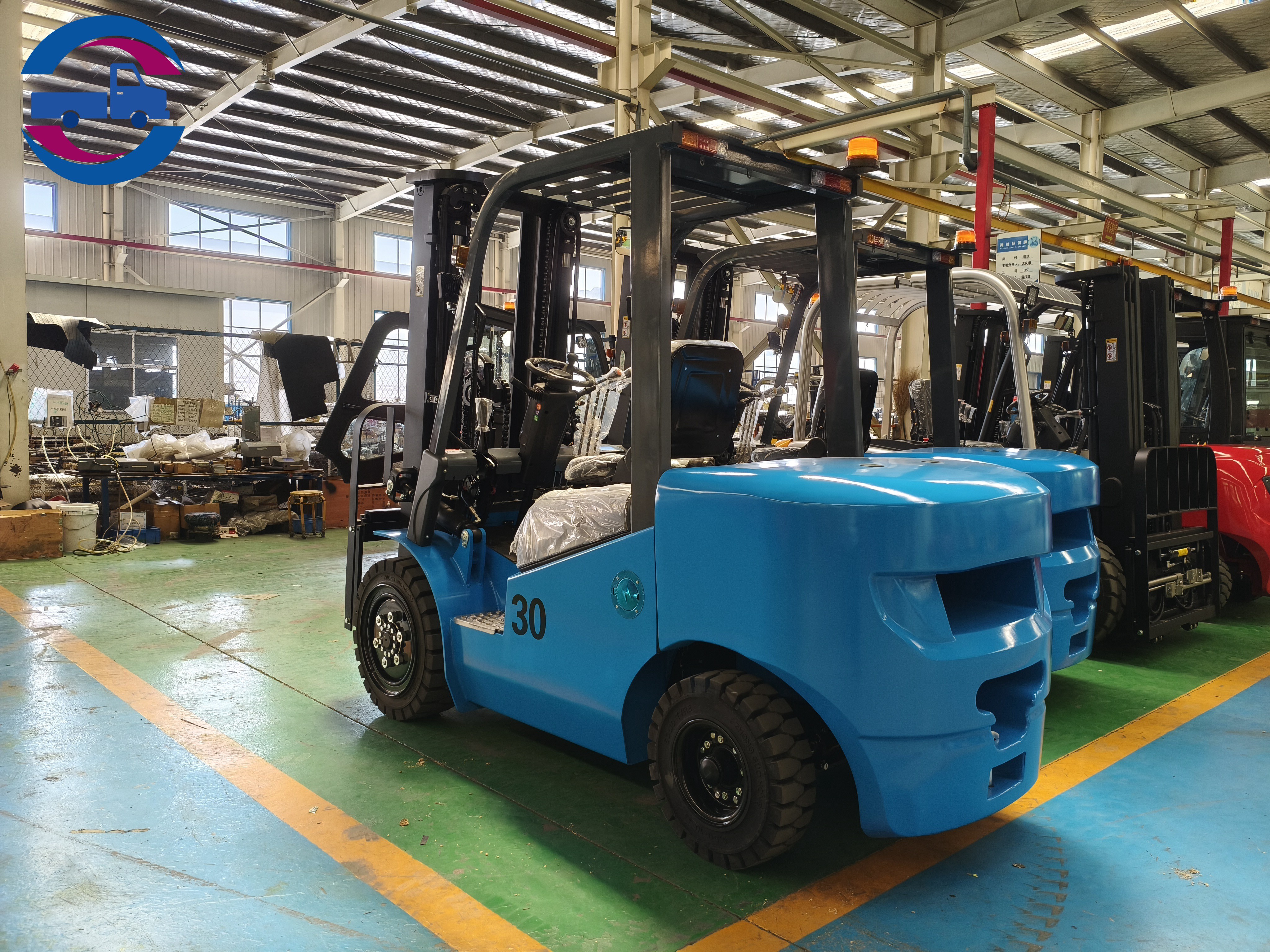

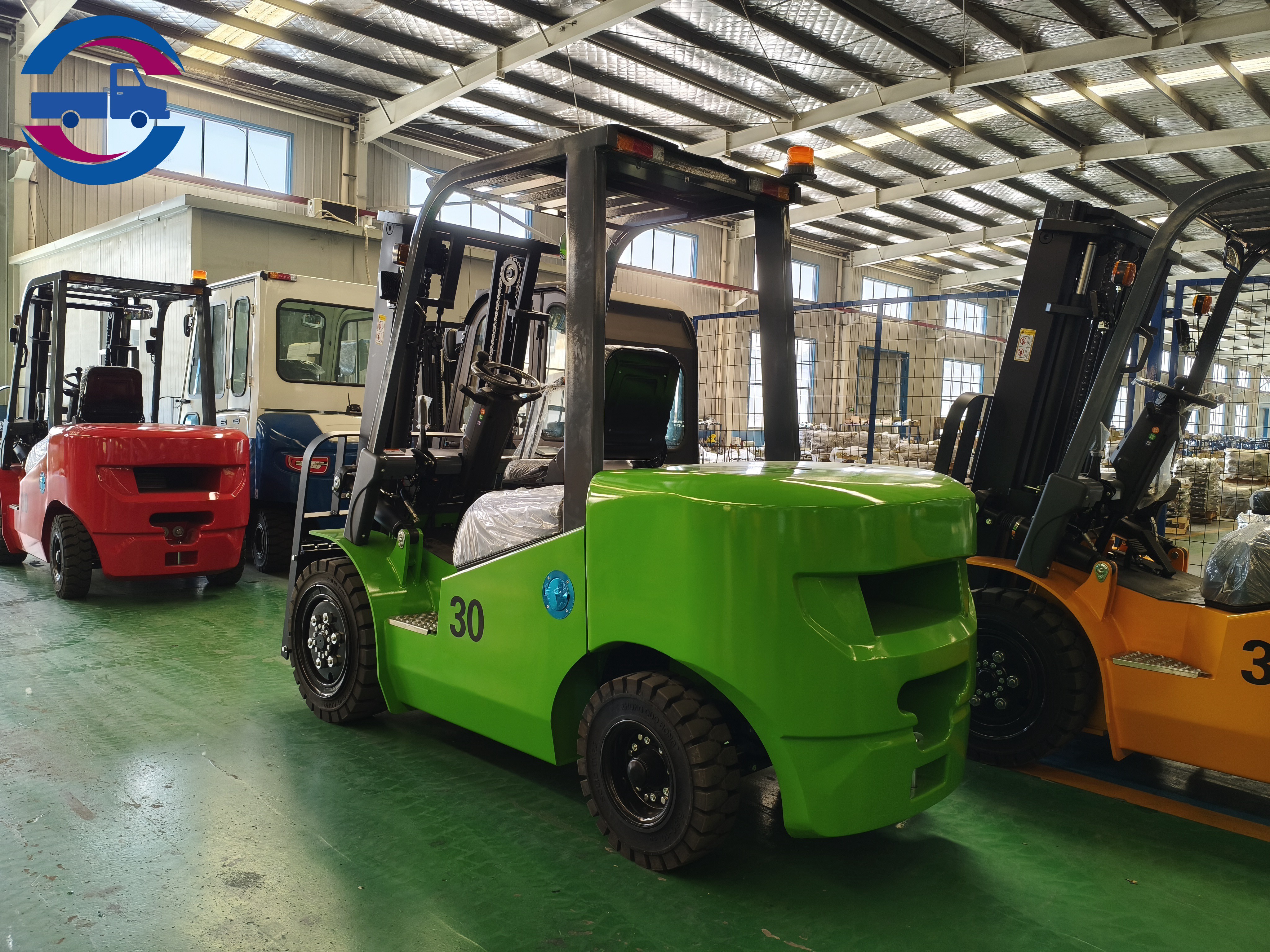

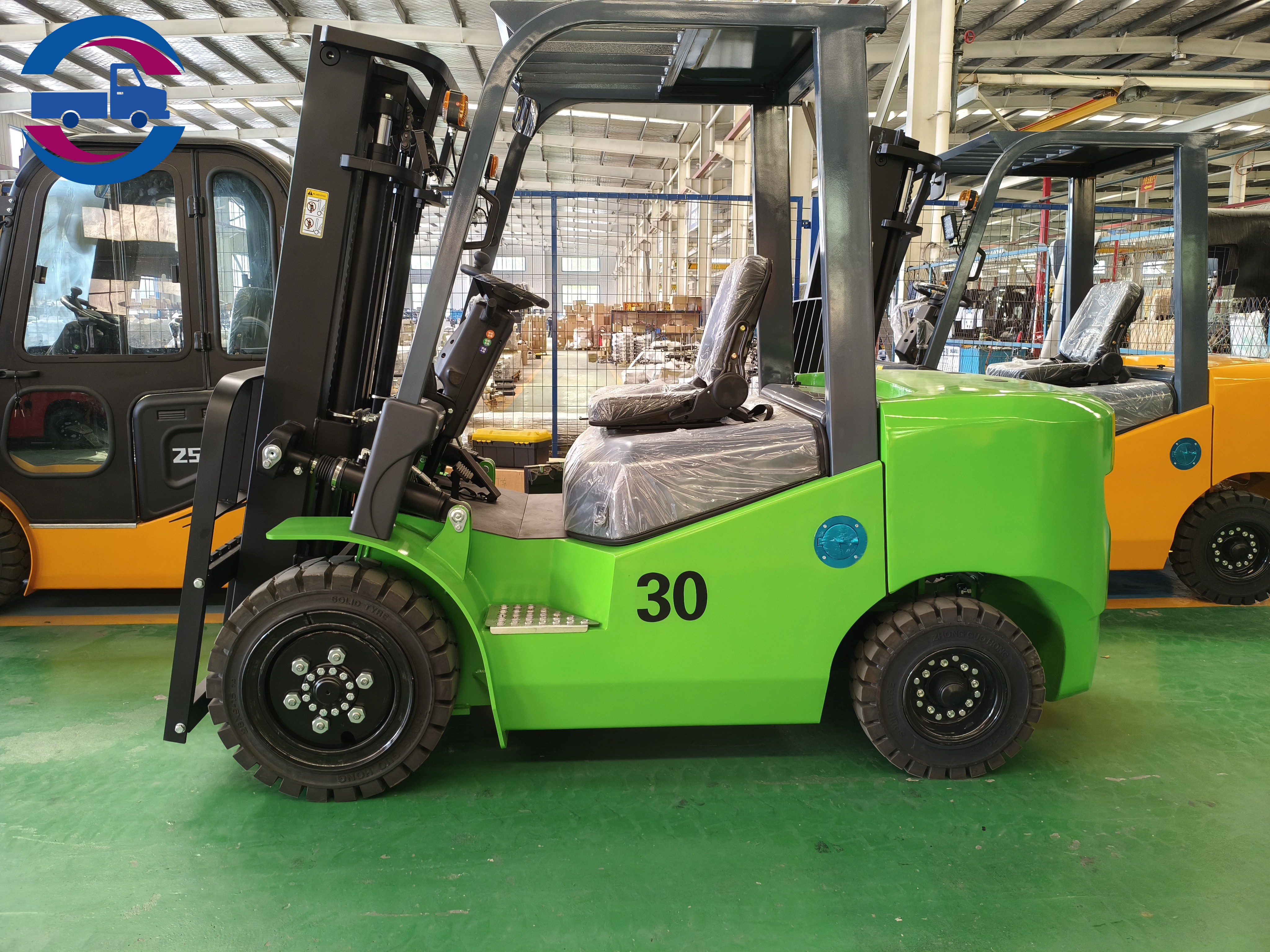

3.0-Ton Electric Forklift

It is a versatile industrial special equipment that integrates loading and unloading, stacking, and short-distance transfer operations. It serves as a core material handling device in modern warehousing, manufacturing, and logistics industries. Relying on the front-end elevating forks in conjunction with a hydraulic system, it completes cargo lifting, stacking, and transfer operations, significantly replacing manual handling and enhancing warehouse circulation efficiency.

tummy-gm@chengchivehicle.com

+86 18866611248

Product Display

Product Parameters

Parameter Name	Parameter Value	Parameter Name	Parameter Value

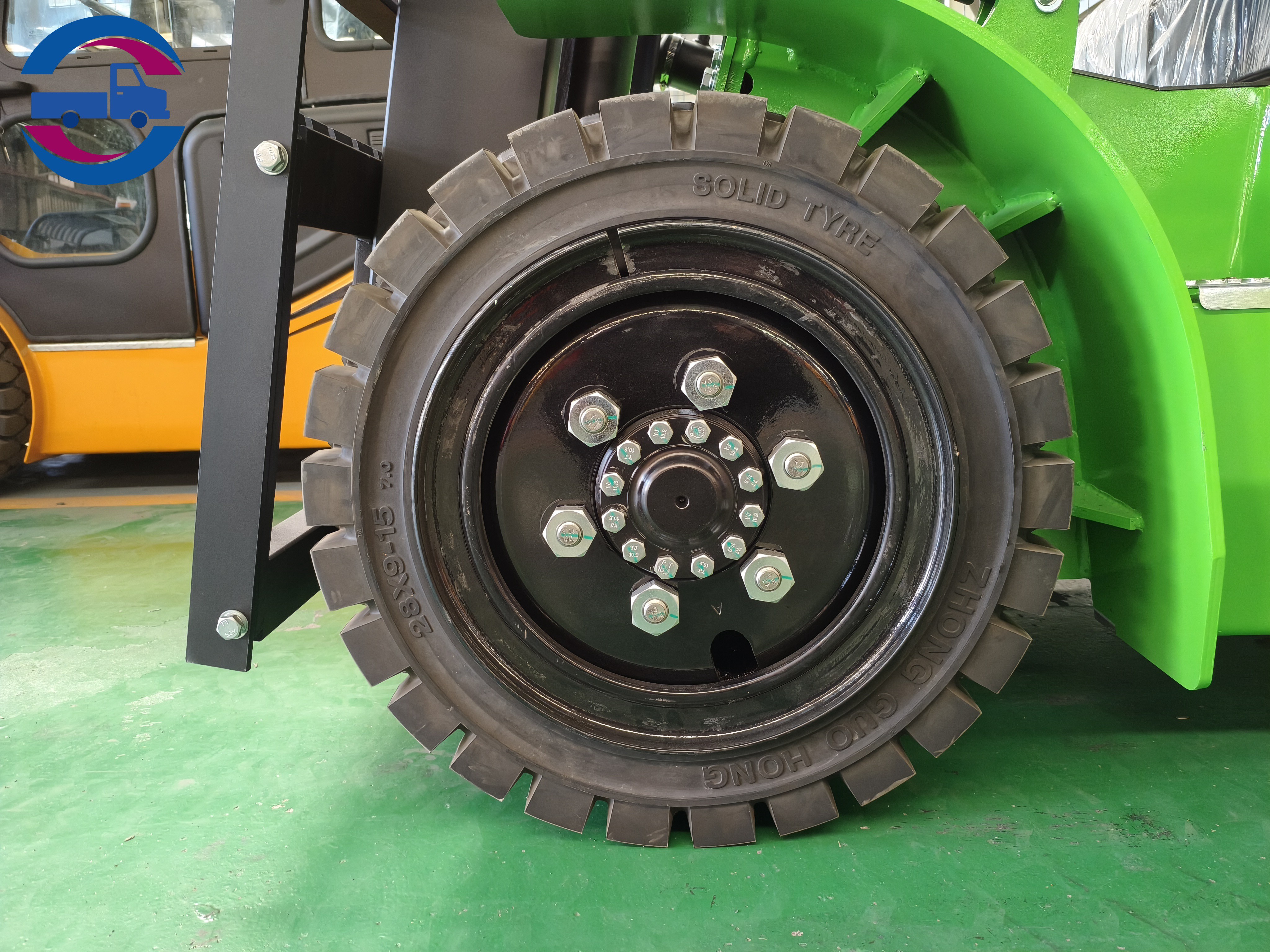

Rated Load Capacity (kg)	3000	Tire Type	Solid tires
Mast Lifting Height (mm)	3000	Front Wheel Size (mm)	28.5-15
Load Center Distance	500	Rear Wheel Size (mm)	18*7-8
Fork Ground Clearance After Lowering (mm)	105	Overall Machine Weight (kg)	4100
Turning Radius (mm)	2400	Operation Type	Driving style
Minimum Right Angle Aisle Width (mm)	1800	Steering Type	Hydraulic assist
Mast Static Height (mm)	2030	Wheelbase (mm)	1600
Overall Body Length (mm)	2600	Front/Rear Track Width (mm)	1020/750
Overall Body Width (mm)	1240	Charging Input Voltage (V)	220
Maximum Fork Spacing (mm)	1100	Rated Voltage (V)	80
Maximum Height During Operation (mm)	4210	Battery Capacity (Ah)	500ah*6
Fork Dimensions (L×W×H) (mm)	107012245	Lifting Motor (kW)	11.5
Minimum Fork Width (mm)	245	Drive Motor (kW)	10
Lifting Speed (Loaded/Unloaded) mm/s	270/290	Power Type	battery

Packaging And Transportation

faq



What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated



What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company



Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.



Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.



Are you a factory or a distributor?

We are a factory with 15 years of export experience



How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
