Electric Forklift 3.5-Ton
It is a versatile industrial special equipment that integrates loading and unloading, stacking, and short-distance transfer operations. It serves as a core material handling device in modern warehousing, manufacturing, and logistics industries. Relying on the front-end elevating forks in conjunction with a hydraulic system, it completes cargo lifting, stacking, and transfer operations, significantly replacing manual handling and enhancing warehouse circulation efficiency.
tummy-gm@chengchivehicle.com
+86 18866611248
Contact Us

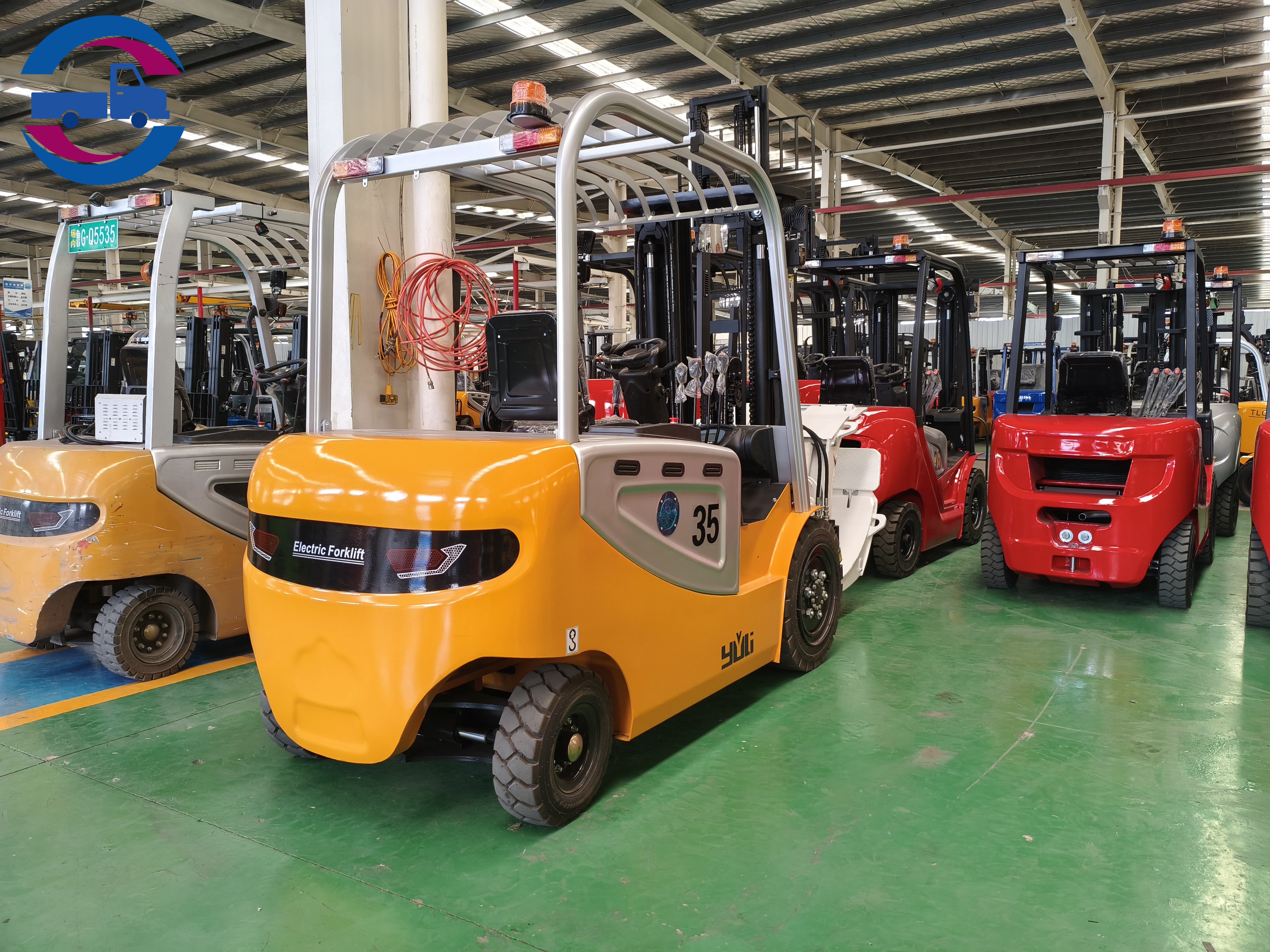

Product Display

Electric Forklift 3.5-Ton

Product Parameters

Parameter NameParameter ValueParameter NameParameter Value

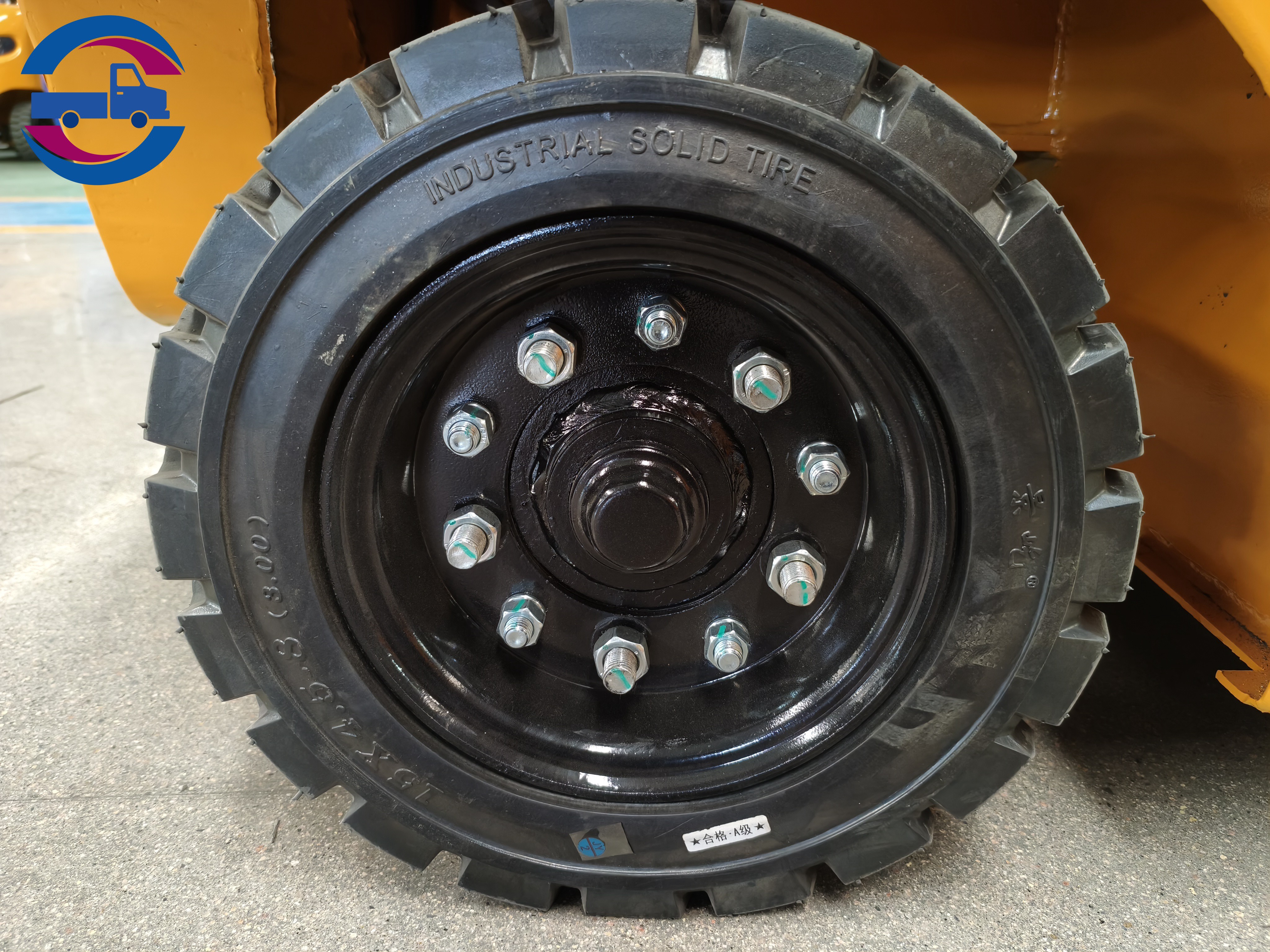

Rated Load Capacity (kg)3500Tire TypeSolid tires
Mast Lifting Height (mm)3000Front Wheel Size (mm)28.5-15
Load Center Distance500Rear Wheel Size (mm)18*7-8
Fork Ground Clearance After Lowering (mm)200Overall Machine Weight (kg)650-10
Turning Radius (mm)2300Operation TypeDriving style
Minimum Right Angle Aisle Width (mm)1800Steering TypeHydraulic assist
Mast Static Height (mm)2200Wheelbase (mm)1600
Overall Body Length (mm)2700Front/Rear Track Width (mm)1000/980
Overall Body Width (mm)1250Charging Input Voltage (V)220
Maximum Fork Spacing (mm)1100Rated Voltage (V)80
Maximum Height During Operation (mm)4210Battery Capacity (Ah)500ah*6
Fork Dimensions (L×W×H) (mm)1070*122*45Lifting Motor (kW)13.5
Minimum Fork Width (mm)245Drive Motor (kW)16.6


Packaging And Transportation

faq

What kind of payment method can I choose?

(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated

What is the shipping method and time?

Ro-ro, deck, frame, shipping time depends on shipping company

Can You Supply The Spare Parts Of This Truck Trailer?

Yes, We can supply the spare parts for all the truck trailers we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

Can You Satisfy My Special Requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity! And we think about customer's demands considerately, provide professional trailer designed solutions.

Are you a factory or a distributor?

We are a factory with 15 years of export experience

How to guarantee truck quality?

There is a one-year warranty, and all parts are inspected.
